PERFORMERS IMPRESSIVE LITTLE
-
GRAY
PORTABLE FOUR STROKES
Yamaha’s smallest Portables, the F6, F4 and F2.5, weigh in at as little as 37 pounds, with streamlined overhead-valve, one-cylinder designs. Their light weights, combined with built-in carrying handles, resting pads and an oil-leak prevention system for on-side storage capability create true portability. Add to that their efficiency, performance and reliability and these pint-sized powerhouses are perfect for all sorts of light duty, like hopping to the cuddy on a tender. Wherever the day takes you, you can take along a little extra power with an F6, F4 or F2.5 Yamaha Portable.
Owner's Manuals
PORTABLES PACKED WITH PERFORMANCE
They weigh as little as 37 pounds, but all offer impressive features like electronic ignition, thermostatic cooling and 180-degree steering.
POWER & PERFORMANCE

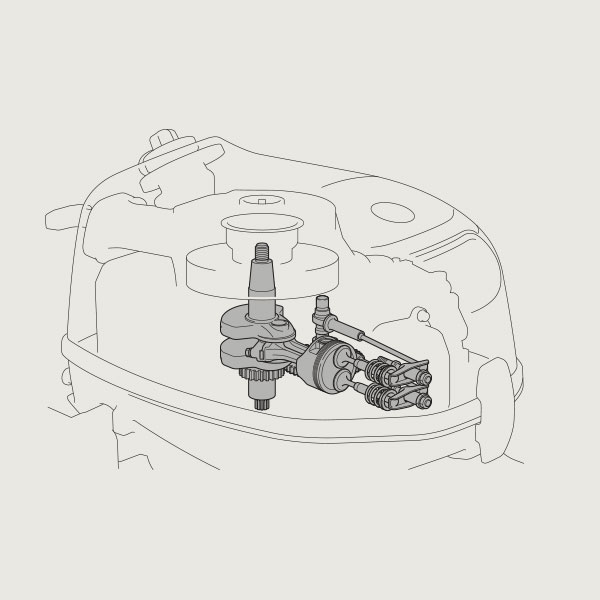

Lightweight, Portable Power
They may weigh as little as 37 pounds, but these Overhead-Valve portable outboards are packed with features that create smooth, quiet power. This includes a CDI or TCI ignition system, an optimally balanced crankshaft, a long span mounting system and a labyrinth exhaust.
Surprising Performance
The portable F6, F4 and F2.5 all offer impressive features like electronic ignition, thermostatic cooling and 180-degree steering.
Record Setting Fuel Efficiency
Small motors use less fuel, but according to the Guinness Book of World Records, the Yamaha F4 actually set a world record for fuel efficiency, traveling 67.27 continuous statute miles on one gallon of gas.
RELIABILITY & DURABILITY
RELIABILITY & DURABILITY
WET SUMP
A pressurized oil delivery system that incorporates a compact and durable oil pump to keep all of the moving parts of their Overhead Valve systems lubricated and running smoothly for maximum reliability.
Convenience & Control
EASY STORAGE
Yamaha’s F2.5, F4, and F6 feature our Easy Storage Oil Retention System. This pressurized oiling system prevents leaks, enabling on-side storage.COMFORTABLE CONTROL
Incredibly nimble, the F6 and F4 feature 180-degree steering and the F2.5 features 360-degree steering with a dynamically balanced and dampened twist-grip throttle for comfort and convenient maneuverabilty.PORTABILITY AND STORAGE
Built-in front and rear handles make these lightweights easy to carry. Resting pads and an easy oil retention system allow for convenient on-side storage without cowling scuffs or oil leakage.
Product Videos
Yamaha Portable
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)

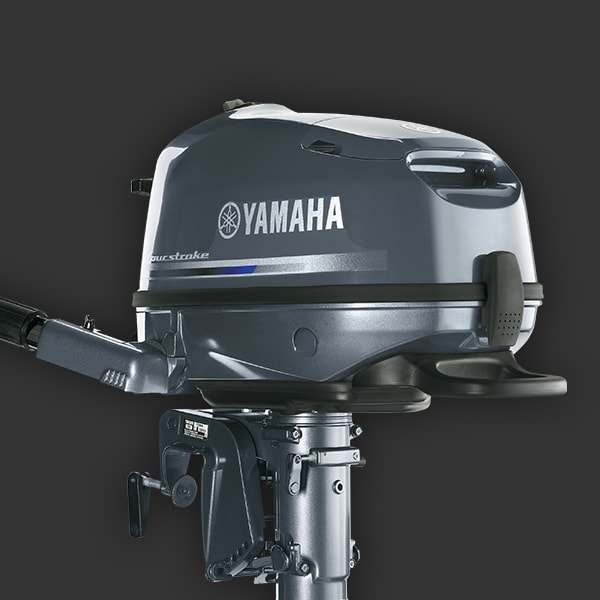

6 - 2.5 hp 6 hp
Our 139-cc 6-hp portable is an impressive little outboard. It boasts surprising features for such a small motor, like labyrinth exhaust and a long span mounting system for smooth, quiet power. It also offers the convenience an external fuel tank (in addition to its built-in tank) for extended range and added convenience.
- Tiller-handle control with forward-neutral-reverse shifting and an ergonomic twist-grip throttle
- Only 59 pounds (15” shaft model)
- Available in 15” and 20” shaft lengths
- Solid 6-amp alternator (optional)

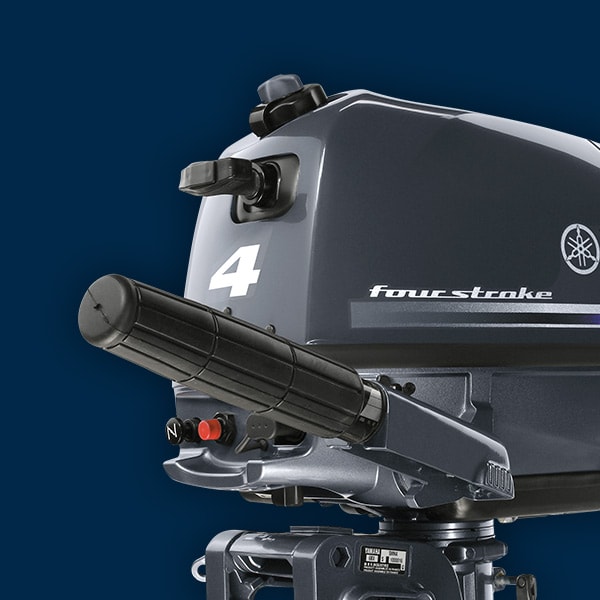

6 - 2.5 hp 4 hp
Our 139-cc 4-hp portable outboard mirrors our OHV F6, with a couple less horses. It features the same ergonomic, easy-grip starter handle with a built-in decompression device for effortless starts. The F4 also features a built-in fuel tank with the option of switchable access to an additional external tank for amazing extended range. There’s no stopping this little brute.
- Tiller-handle control with forward-neutral-reverse shifting and an ergonomic twist-grip throttle
- Only 59 pounds (15” shaft model)
- Available in 15” and 20” shaft lengths
- Solid 6-amp alternator
6 - 2.5 hp 2.5 hp
Our 72-cc 2.5-hp portable outboard is the smallest motor on our roster, but it still packs a punch. Completely redesigned, it’s even more portable, easier to store and clean burning.
- Available for tiller-handle control with forward-neutral shifting, 360-degree steering and an ergonomic twist-grip throttle
- Only 37 pounds (15” shaft model)
- Available in 15” and 20” shaft lengths
| Engine Type | 1 cyl |
|---|---|
| Displacement | 139cc |
| Bore x Stroke | 62 x 46mm (2.44 x 1.81in) |
| Prop Shaft Horsepower | 6hp at 5000 rpm |
| Full Throttle RPM Range | 4500 ~ 5500 |
| Alternator Output at W.O.T. | 6 Amp |
| Compression Ratio | 8.9:1 |
| Fuel Induction System | Carb |
| Weight † | 27 kg (59 lbs) - 28 kg (61 lbs) |
| Recommended Fuel | Octane 87 |
| Recommended Engine Oil | Yamalube® 4M (See owner's manual) |
| Recommended Fuel Filtration | N/A |
| C.A.R.B. Rating | 3-Star |
| Exhaust | Above Propeller |
| Intake | 2 |
| Ignition | CDI |
| Spark Plug | CR6HSB |
| Starting System | Manual |
| Lubrication | Wet Sump |
| Engine Oil Capacity | 0.6L |
| Recommended Cooling | Thermostatic Control |
| Ethanol Blend Limit | 10% Maximum |
| Gear Ratio | 2.08:1 |
| Gear Shift | Forward, Neutral, Reverse |
| Shaft Length | 15" - 20" |
| Degree of Tilt | 69° |
| Degree of Trim | -4° through +16° |
| Mounting Centers | N/A |
| Steering | |
| Steering Angle (maximum) | 90° from center, either direction |
| Warranty | Limited 3-Year Pleasure, 3-Year Government, 1-Year Commercial |
† Weight refers to shortest shaft length, and is measured without motor oil, gearcase oil and propeller (except models 25 hp and under, which include a standard propeller). All Jet model weights include the jet pump assembly (weight estimated).
| Engine Type | 1 cyl |
|---|---|
| Displacement | 139cc |
| Bore x Stroke | 62 x 46mm (2.44 x 1.81in) |
| Prop Shaft Horsepower | 4hp at 4500 rpm |
| Full Throttle RPM Range | 4000 ~ 5000 |
| Alternator Output at W.O.T. | 6 Amp |
| Compression Ratio | 8.9:1 |
| Fuel Induction System | Carb |
| Weight † | 27 kg (59 lbs) - 28 kg (61 lbs) |
| Recommended Fuel | Octane 87 |
| Recommended Engine Oil | Yamalube® 4M (See owner's manual) |
| Recommended Fuel Filtration | N/A |
| C.A.R.B. Rating | 3-Star |
| Exhaust | Above Propeller |
| Intake | 2 |
| Ignition | CDI |
| Spark Plug | CR6HSB |
| Starting System | Manual |
| Lubrication | Wet Sump |
| Engine Oil Capacity | 0.6L |
| Recommended Cooling | Thermostatic Control |
| Ethanol Blend Limit | 10% Maximum |
| Gear Ratio | 2.08:1 |
| Gear Shift | Forward, Neutral, Reverse |
| Shaft Length | 15" - 20" |
| Degree of Tilt | 69° |
| Degree of Trim | -4° through +16° |
| Mounting Centers | N/A |
| Steering | |
| Steering Angle (maximum) | 90° from center, either direction |
| Warranty | Limited 3-Year Pleasure, 3-Year Government, 1-Year Commercial |
† Weight refers to shortest shaft length, and is measured without motor oil, gearcase oil and propeller (except models 25 hp and under, which include a standard propeller). All Jet model weights include the jet pump assembly (weight estimated).
| Engine Type | 1 cyl |
|---|---|
| Displacement | 72cc |
| Bore x Stroke | 54 x 31.5 mm (2.13 x 1.24 in) |
| Prop Shaft Horsepower | 2.5hp at 5500 rpm |
| Full Throttle RPM Range | 5250 ~ 5750 |
| Alternator Output at W.O.T. | N/A |
| Compression Ratio | 8.8:1 |
| Fuel Induction System | Carb |
| Weight † | 17 kg (37 lbs) - 20 kg (40lbs) |
| Recommended Fuel | Octane 87 |
| Recommended Engine Oil | Yamalube® 4M (See owner's manual) |
| Recommended Fuel Filtration | N/A |
| C.A.R.B. Rating | 2-Star |
| Exhaust | Above Propeller |
| Intake | 2 |
| Ignition | TCI |
| Spark Plug | CR6HSB |
| Starting System | Manual |
| Lubrication | Splash |
| Engine Oil Capacity | 0.35L |
| Recommended Cooling | Thermostatic Control |
| Ethanol Blend Limit | 10% Maximum |
| Gear Ratio | 2.01:1 |
| Gear Shift | Forward, Neutral |
| Shaft Length | 15" - 20" |
| Degree of Tilt | 79° |
| Degree of Trim | -4° through +16° |
| Mounting Centers | N/A |
| Steering | |
| Steering Angle (maximum) | 360° from center, either direction |
| Warranty | Limited 3-Year Pleasure, 3-Year Government, 1-Year Commercial |
† Weight refers to shortest shaft length, and is measured without motor oil, gearcase oil and propeller (except models 25 hp and under, which include a standard propeller). All Jet model weights include the jet pump assembly (weight estimated).
