Performance Bulletin


Engine: Yamaha LXF450XSA4 / XF450ESA4 / LXF450ESA4 / XF450XSA4
Boat: Grady White 415 Freedom
Configuration: Quad
Test Date: 23-Apr-2025
Grady White® - Grady White 415 Freedom

Performance Bulletin

69 - Grady White 415 Freedom

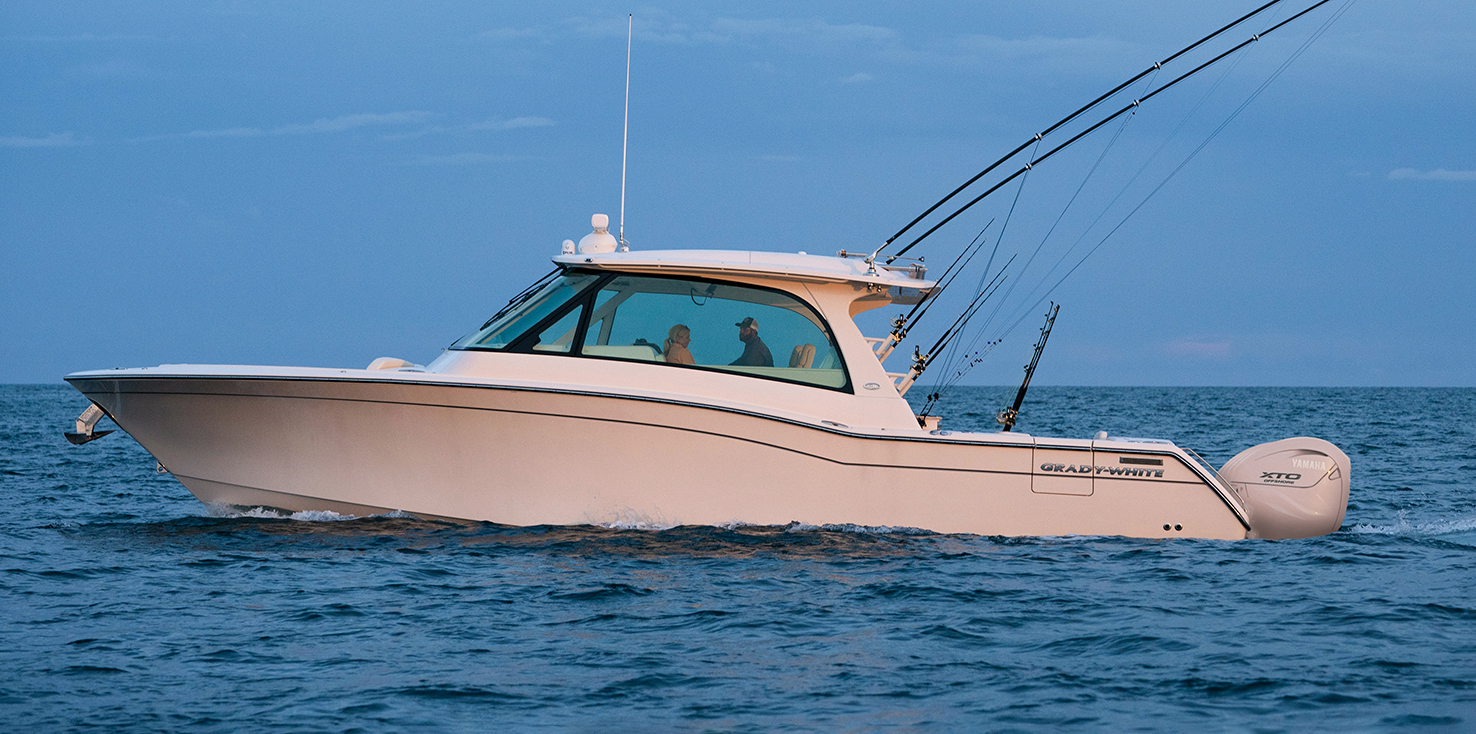

Grady White 415 Freedom

Length 40' 7"
Beam 13' 8"
Dry Weight (Boat Mfr. Pub) 22,950 lbs
Maximum HP 1,800 hp
Fuel Capacity 520 gal
Weight as Tested 30,358 lbs

LXF450XSA4 / XF450ESA4 / LXF450ESA4 / XF450XSA4

Horsepower 450 hp
Induction DI/VCT/DOHC
Displacement 5.6L
Weight (Estimated) 963 - 1,010 - 1,010 - 963 lbs
Gear Ratio 1.79:1

Engine Mounting Height

Mounting Hole Position #4

Propeller(s)

Series XTO Offshore
Diameter x Pitch 16-3/8 x 21
Yamaha Part # 6GS-45976-20-00 / 6GR-45976-20-00 / 6GS-45976-20-00 / 6GR-45976-20-00
Propeller Material Stainless Steel

Test Conditions

Number of People 3
Air / Water Temperature (Fahrenheit) 77° F / 75° F
Elevation (in feet above sea level) 0'
Wind Velocity 5-10 MPH

Comments

Test weight includes 300 gallons of fuel, safety and test equipment.

YPB#: PB_GRW_415 Freedom_QD_LXF450XSA4_04-23-2025_ODC

Grady White® - Grady White 415 Freedom

Performance Bulletin


Engine: Yamaha LXF450XSA4 / XF450ESA4 / LXF450ESA4 / XF450XSA4
Boat: Grady White 415 Freedom
Configuration: Quad
Test Date: 23-Apr-2025
LXF450XSA4 / XF450ESA4 / LXF450ESA4 / XF450XSA4

Performance Data

RPM
MPH
GPH
MPG
1000 6.6 7.3 0.90
1500 9.0 12.1 0.74
2000 10.8 19.4 0.56
2500 12.3 29.5 0.42
3000 21.9 39.9 0.55
3500 30.2 49.3 0.61
4000 37.2 63.8 0.58
4500 43.3 82.5 0.52
5000 49.1 102.6 0.48
5500 54.6 127.1 0.43
6000 59.7 157.5 0.38

0-30 MPH: 9.00 seconds
