PROPELLERS


PROPELLERS


From large offshore boats to family and watersports boats to the fastest bass and bay boats, Yamaha has a propeller solution that's just right for your application.

prop

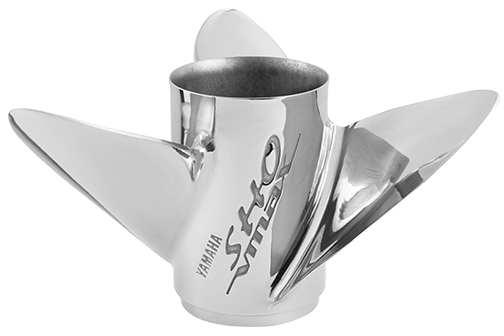

V MAX SHO®


This stainless-steel, three-blade propeller features an ultra-high-performance ventless design and single-inch pitches. This allows you to fine-tune the performance of our four-stroke V MAX SHO.

Diameter
Pitch
Rotation
HUB
Part No.
15 1/8 22 RH Pressed In 6CB-45932-11-00
15 1/8 23 RH Pressed In 6CB-45974-11-00
15 1/8 24 RH Pressed In 6CB-45930-11-00
15 1/8 25 RH Pressed In 6CB-45972-11-00
15 1/8 26 RH Pressed In 6CB-45978-11-00
15 1/8 27* RH Pressed In 6CB-45970-11-00
prop

Pro™ Series


This stainless-steel, three-blade propeller provides high performance for single-outboard boats requiring bow lift.

Diameter
Pitch
Rotation
HUB
Part No.
14 1/2 21 RH Pressed In 66K-45976-B0-00
14 1/2 23 RH Pressed In 66K-45974-B0-00
14 1/2 25 RH Pressed In 66K-45972-B0-00
14 1/2 27 RH Pressed In 66K-45970-B0-00
prop

Talon SS4™


This stainless-steel, three-blade propeller produces a stronger hole shot than comparable 3-blade propellers. Excellent on mid-range powered flats boats or on applications requiring high engine mounting heights. Fits F70 to VF115, T50/T60 K series (4.25") gearcases. Standard Shift Dampener System (SDS).

Diameter
Pitch
Rotation
HUB
Part No.
13 1/4 14 RH SDS* 6N6-45B70-00-00
13 1/4 16 RH SDS* 6N6-45B72-00-00
13 1/4 18 RH SDS* 6N6-45B74-00-00
13 1/4 20 RH SDS* 6N6-45B76-00-00
13 1/4 22 RH SDS* 6N6-45B78-00-00
13 1/4 23 RH SDS* 6N6-45B80-00-00
prop

Performance XT™


This stainless-steel, three-blade propeller features a large, long blade design, to increase strength and durability. Perfect for older, heavier bass boats with jack plates or high engine mounting heights. Lower pitches ideal for pontoons, F150 and up.

Diameter
Pitch
Rotation
HUB
Part No.
14 1/2 17 RH Pressed In MAR-GYT3B-XL-17
14 1/2 19 RH Pressed In MAR-GYT3B-XL-19
14 1/2 21 RH Pressed In MAR-GYT3B-XL-21
14 5/8 22 RH Pressed In MAR-GYT3B-XL-22
14 5/8 23 RH Pressed In MAR-GYT3B-XL-23
14 5/8 25 RH Pressed In MAR-GYT3B-XL-25
14 5/8 27 RH Pressed In MAR-GYT3B-XL-27
prop

Saltwater Series II™ HP


This stainless-steel, three-blade propeller can boost top-end speed on lightweight center consoles, flats/bay boats and more. Designed for V6 F200 – F300.

Diameter
Pitch
Rotation
HUB
Part No.
15 1/4 18 RH SDS* 6KA-45970-00
15 1/4 18 LH SDS* 6KB-45970-00
15 1/4 19 RH SDS* 6KA-45972-00
15 1/4 19 LH SDS* 6KB-45972-00
15 20 RH SDS* 6KA-45974-00
15 20 LH SDS* 6KB-45974-00
15 21 RH SDS* 6KA-45976-00
15 21 LF SDS* 6KB-45976-00
prop

TURBO® FXP™


This stainless-steel, three-blade propeller is designed specifically for ultra-high-performance outboards. It's perfect for light, high performance bass, bay and flats boats powered by Yamaha's V MAX SHO.

All Turbo props are polished stainless steel, designed and built for high performance for all Yamaha outboards. They are manufactured by Yamaha Marine Precision Propeller Industries, Inc., a wholly-owned subsidiary of Yamaha.

Diameter
Pitch
Rotation
HUB
Part No.
14 3/4 22 RH Pressed In MAR-14722-R1-00
14 3/4 23 RH Pressed In MAR-14723-R1-00
14 3/4 24 RH Pressed In MAR-14724-R1-00
14 3/4 25 RH Pressed In MAR-14725-R1-00
14 3/4 26 RH Pressed In MAR-14726-R1-00
14 3/4 27 RH Pressed In MAR-14727-R1-00
prop

TURBO® LIGHTNING™


This stainless-steel, three-blade propeller features thick blades to increase strength, longevity and durability. It's ideal for older, heavier designed bass and flats boats with high engine mounting heights.

All Turbo props are polished stainless steel, designed and built for high performance for all Yamaha outboards. They are manufactured by Yamaha Marine Precision Propeller Industries, Inc., a wholly-owned subsidiary of Yamaha.

Diameter
Pitch
Rotation
HUB
Part No.
14 1/2 17 RH See Hub Chart MAR-14517-LR-E0
14 1/2 18 RH See Hub Chart MAR-14518-LR-E0
14 1/2 19 RH See Hub Chart MAR-14519-LR-E0
14 1/2 21 RH See Hub Chart MAR-14521-LR-E0
14 3/4 22 RH See Hub Chart MAR-14522-LR-E0
14 3/4 23 RH See Hub Chart MAR-14523-LR-E0
14 3/4 24 RH See Hub Chart MAR-14524-LR-E0
14 3/4 25 RH See Hub Chart MAR-14525-LR-E0
14 3/4 26 RH See Hub Chart MAR-14526-LR-E0
14 3/4 27 RH See Hub Chart MAR-14527-LR-E0
14 3/4 28 RH See Hub Chart MAR-14528-LR-E0
14 3/4 29 RH See Hub Chart MAR-14529-LR-E0
prop

TURBO® TXP™


This stainless-steel, three-blade propeller features an aggressive pitch and cupping for high-speed use. It's ideal for boats using high engine mounting heights or a hydraulic jack plate.

All Turbo props are polished stainless steel, designed and built for high performance for all Yamaha outboards. They are manufactured by Yamaha Marine Precision Propeller Industries, Inc., a wholly-owned subsidiary of Yamaha.

Diameter
Pitch
Rotation
HUB
Part No.
14 3/4 21 RH See Hub Chart MAR-14721-XR-E0
14 3/4 23 RH See Hub Chart MAR-14723-XR-E0
14 3/4 24 RH See Hub Chart MAR-14724-XR-E0
14 3/4 25 RH See Hub Chart MAR-14725-XR-E0
14 3/4 26 RH See Hub Chart MAR-14726-XR-E0
14 3/4 27 RH See Hub Chart MAR-14727-XR-E0
14 3/4 28 RH See Hub Chart MAR-14728-XR-E0
14 3/4 29 RH See Hub Chart MAR-14729-XR-E0
14 3/4 30 RH See Hub Chart MAR-14730-R1-00
14 3/4 31 RH See Hub Chart MAR-14731-XR-E0
14 3/4 32 RH See Hub Chart MAR-14732-XR-E0
prop

TURBO® TXP™ With Adjustable Ventilation Ports


This stainless-steel, three-blade propeller features an aggressive pitch and cupping for high-speed use. It's ideal for boats using high engine mounting heights or a hydraulic jack plate. The adjustable ventilation ports allow for boaters to have even more control of their boating experience.

All Turbo props are polished stainless steel, designed and built for high performance for all Yamaha outboards. They are manufactured by Yamaha Marine Precision Propeller Industries, Inc., a wholly-owned subsidiary of Yamaha.

Diameter
Pitch
Rotation
HUB
Part No.
14 3/4 21 RH See Hub Chart MAR-14721-XR-EM
14 3/4 23 RH See Hub Chart MAR-14723-XR-EM
14 3/4 24 RH See Hub Chart MAR-14724-XR-EM
14 3/4 25 RH See Hub Chart MAR-14725-XR-EM
14 3/4 26 RH See Hub Chart MAR-14726-XR-EM
14 3/4 27 RH See Hub Chart MAR-14727-XR-EM
14 3/4 28 RH See Hub Chart MAR-14728-XR-EM
14 3/4 29 RH See Hub Chart MAR-14729-XR-EM
14 3/4 30 RH See Hub Chart MAR-14730-XR-EM
14 3/4 31 RH See Hub Chart MAR-14731-XR-EM
14 3/4 32 RH See Hub Chart MAR-14732-XR-EM
prop

TURBO® TXP OT4™


This stainless-steel, four-blade propeller is excellent for very light, high-speed boats, particularly those using high engine mounting heights or a hydraulic jack plate. With this propeller, expect faster hole shots and quicker acceleration.

All Turbo props are polished stainless steel, designed and built for high performance for all Yamaha outboards. They are manufactured by Yamaha Marine Precision Propeller Industries, Inc., a wholly-owned subsidiary of Yamaha.

Diameter
Pitch
Rotation
HUB
Part No.
14 3/8 23 RH See Hub Chart MAR-14423-TR-E0
14 3/8 24 RH See Hub Chart MAR-14424-TR-E0
14 3/8 25 RH See Hub Chart MAR-14425-TR-E0
14 3/8 26 RH See Hub Chart MAR-14426-TR-E0
14 3/8 27 RH See Hub Chart MAR-14427-TR-E0
14 3/8 28 RH See Hub Chart MAR-14428-TR-E0
14 3/8 29 RH See Hub Chart MAR-14429-TR-E0
14 3/8 30 RH See Hub Chart MAR-14430-TR-E0
14 3/8 31 RH See Hub Chart MAR-14431-TR-E0
prop

TURBO® TXP OT4™| WITH ADJUSTABLE VENTILATION PORTS


This stainless-steel, four-blade propeller is excellent for very light, high-speed boats, particularly those using high engine mounting heights or a hydraulic jack plate. With this propeller, expect faster hole shots and quicker acceleration.

All Turbo props are polished stainless steel, designed and built for high performance for all Yamaha outboards. They are manufactured by Yamaha Marine Precision Propeller Industries, Inc., a wholly-owned subsidiary of Yamaha.

Diameter
Pitch
Rotation
HUB
Part No.
14 3/8 23 RH See Hub Chart MAR-14423-TR-EM
14 3/8 24 RH See Hub Chart MAR-14424-TR-EM
14 3/8 25 RH See Hub Chart MAR-14425-TR-EM
14 3/8 26 RH See Hub Chart MAR-14426-TR-EM
14 3/8 27 RH See Hub Chart MAR-14427-TR-EM
14 3/8 28 RH See Hub Chart MAR-14428-TR-EM
14 3/8 29 RH See Hub Chart MAR-14429-TR-EM
14 3/8 30 RH See Hub Chart MAR-14430-TR-EM
prop

TURBO® ULTIMA™ 4


This stainless-steel, four-blade propeller is suitable for V6 offshore outboards utilizing a high engine-mounting or operating height. It is an ideal propeller for bay and flats boats due to stern lift at hole shot and during acceleration.

All Turbo props are polished stainless steel, designed and built for high performance for all Yamaha outboards. They are manufactured by Yamaha Marine Precision Propeller Industries, Inc., a wholly-owned subsidiary of Yamaha.


Diameter
Pitch
Rotation
HUB
Part No.
14 1/4 13 RH See Hub Chart MAR-14413-UR-E0
14 1/4 13 LH See Hub Chart MAR-14413-UL-E0
14 1/4 15 RH See Hub Chart MAR-14415-UR-E0
14 1/4 15 LH See Hub Chart MAR-14415-UL-E0
14 1/4 17 RH See Hub Chart MAR-14417-UR-E0
14 1/4 17 LH See Hub Chart MAR-14417-UL-E0
14 1/4 19 RH See Hub Chart MAR-14419-UR-E0
14 1/4 19 LH See Hub Chart MAR-14419-UL-E0
14 1/4 20 RH See Hub Chart MAR-14420-UR-E0
14 1/4 21 RH See Hub Chart MAR-14421-UR-E0
14 1/4 21 LH See Hub Chart MAR-14421-UL-E0
14 1/4 22 RH See Hub Chart MAR-14422-UR-E0
14 1/4 23 RH See Hub Chart MAR-14423-UR-E0
14 1/4 23 LH See Hub Chart MAR-14423-UL-E0
14 1/4 25 RH See Hub Chart MAR-14425-UR-E0
14 1/4 25 LH See Hub Chart MAR-14425-UL-E0

PROP SELECTOR

Enter your details. Find the right prop.

Easily zero-in on the best propeller options based on your type of craft, horsepower and performance goals with this smart, online tool.

Visit Yamaha Prop Selector
Propeller Propeller

SDS™ OUR PATENTED SHIFT DAMPENER SYSTEM

SDS absorbs the forces, sounds and vibrations from shifting gears, creating a smoother, quieter ride. That’s an advantage when cruising, docking, fishing and positioning your boat over bait.

Currently SDS is available on the following Yamaha propellers:

Boat Type Available Props
Large Offshore Boats XTO OS Saltwater Series II Saltwater Series XL Saltwater Series XL4 Saltwater Series XL4 - HP Saltwater Series HS4
Medium/Small Boats Reliance Talon Talon SS Talon Pontoon Talon GP
Family/Watersport Boats Reliance Talon Talon SS Talon Pontoon Talon GP
