Yamaha's award-winning 5.6L V8 XTO Offshore® outboards, and their innovative engineering, set the bar for power and performance offshore. With extreme control, precision and reliability—and now up to 450 horses—the XTO Offshore lets you go further, faster and with more confidence than ever before. Packed with industry-first technology like a direct-injection four-stroke powerhead, an award-winning charging system and integrated all-electric steering, the word outboard is an understatement. It's a fully integrated power system. And it's elevating the entire offshore boating experience. Aim for the horizon and beyond with the Yamaha XTO Offshore F450 and F425.
Owner's Manuals
RELIABLE BY DESIGN
The XTO Offshore’s award-winning Phase Angle Control Charging System creates up to 96 amps of net charging power per outboard at idle. That’s up to 480 with quints. In addition to powering a range of critical onboard tech, it prioritizes charging to the starting batteries, for incredible reliability offshore.
POWER & PERFORMANCE
DIRECT-INJECTION FOUR STROKE
Maximizes power and efficiency by spraying fuel at high pressure directly into the combustion chamber.
EXCLUSIVE FUEL SYSTEM
A three-stage low-medium-high pressure fuel pump system works, in part, due to two independent, rpm-activated fuel pumps in the Vapor Separator Tank. This unique five-pump system creates an unprecedented fuel injection pressure of up to 2900 PSI to further maximize atomization and efficiency.

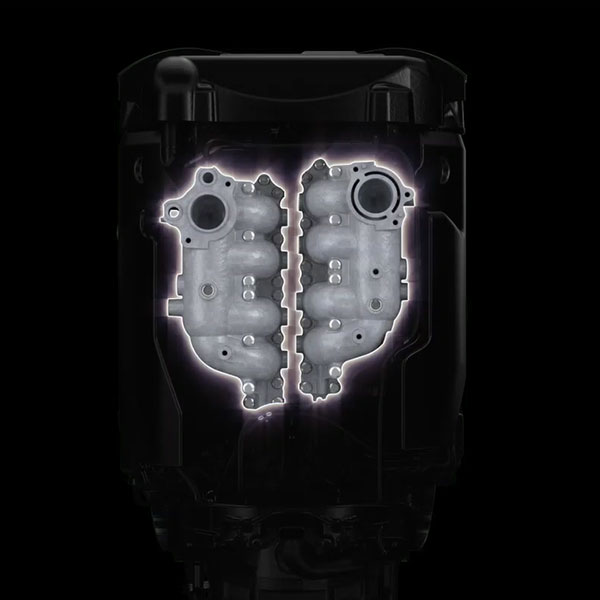

IN-BANK EXHAUST
Intake tracks enter the cylinder head from the outside of the powerhead. This gives exhaust gases room for a direct route to the lower unit and out through the propeller hub, streamlining the powerhead and improving flow.
XTO (SDS) PROPELLERS
With diameters from 16 to 17 1/8 inches, 15 to 27-inch pitches and increased blade surface, XTO propellers complement the torque potential of our V8 XTO Offshore. They also contribute to greater overall thrust.
RELIABILITY & DURABILITY
RELIABILITY & DURABILITY
Carbon-Coated Lifters

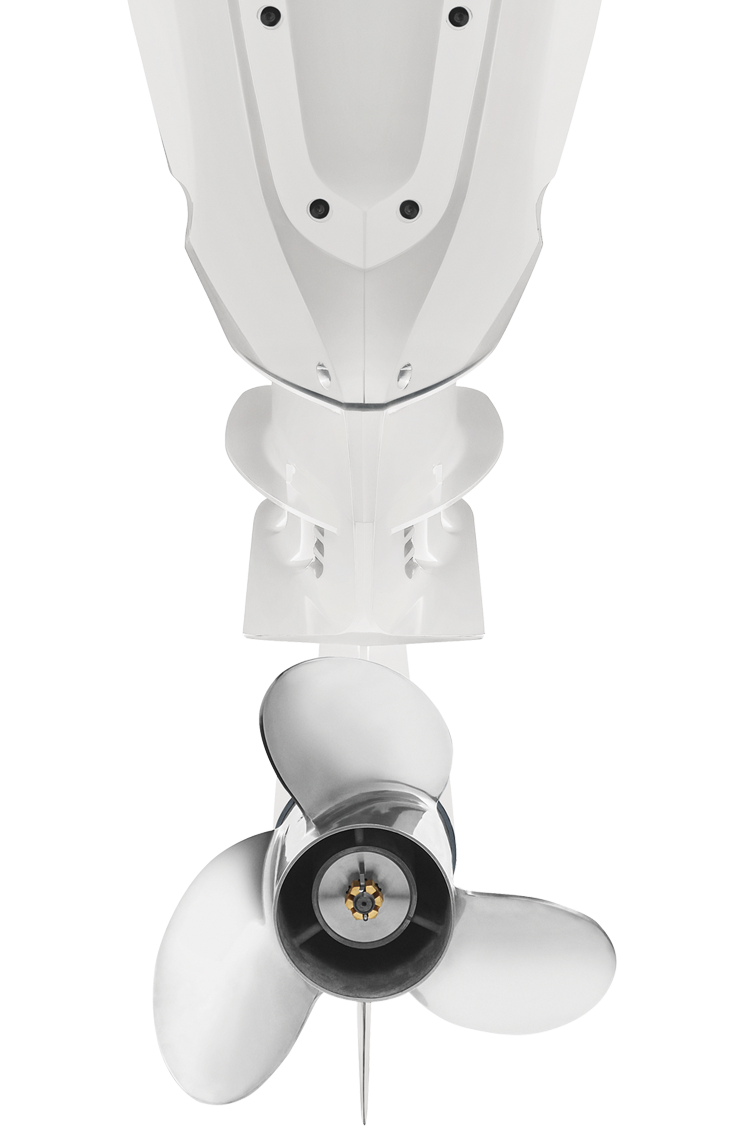

Convenience & Control
In-Water Gear Lube Change System
For the ultimate convenience, a technician can drain and replace your outboard’s lower-unit lubricant without having to remove your boat from the water.Thrust-Enhancing Reverse Exhaust
For more control at lower speeds and increased precision of our Helm Master® EX boat control system, exhaust is diverted away from the propeller at RPMs below 2,500.Pump Stop Power Tilt Limit
The tilt pump shuts off when it reaches maximum tilt setting, rather than continuing to run, saving power and reducing noise at full trim in/out.Dual Flush System
A unique design offers two methods for flushing the XTO, either through a built-in flushing system hose routed through the rigging tube/grommet or through conventional front-mounted direct-hose hook-up.
Wide-Span Mounting System
For minimized vibration and a more compact design, incredibly strong upper motor mounts placed wide on the exterior of the upper mid-section work in conjunction with our Long Span Mounting System.Phase Angle Control Charging
The XTO’s NEW Phase Angle Control Charging System meets the extreme electrical needs of today’s larger boats. This Innovation Award-winning new system produces up to 96 amps of net charging power at idle—from a single outboard—and up to 480 net amps in a quint configuration. This is up to 65 percent more maximum net charge at idle than the previous XTO model.Improved Rigging Tube
A redesigned rigging tube provides an extra 3.25 inches of clearance at the motor well when tilted up, and is compatible with most flat-transom installations.SYSTEM INTEGRATION
DIGITAL ELECTRIC STEERING
The XTO responds quicker to steering inputs because it contains a digital electric steering motor, which directly receives signals from the electric helm to the integrated steering control unit.
HELM MASTER® EX
Helm Master EX now features more than 10 automated modes, including new DriftPoint® Track, which helps to automate the drifting of an uneven shoreline; new Autopilot with Heading and Course Hold; the expanded ability to control up to five outboards, and more.
V8 5.6L 450 hp
The XTO Offshore® 450 packs everything boaters love about the original XTO outboard—the durability, power and reliability—plus extra horses. With impressive stats such as 12.3:1 compression ratio for impressive fuel economy and power and industry-first features such as an integrated electric steering system and Phase Angle Control Charging, it’s purpose-built for the extremes of going offshore.- Award-winning Phase Angle Control Charging System*

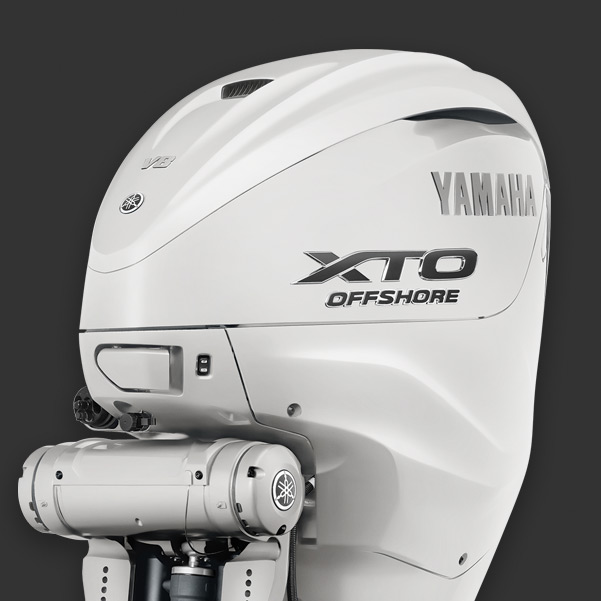

- Available in signature Yamaha gray or new pearlescent white
- 450 hp on less-expensive 89-octane gasoline
- Compatible with Helm Master® EX
- Impressive 5-year Limited Warranty, for pleasure use

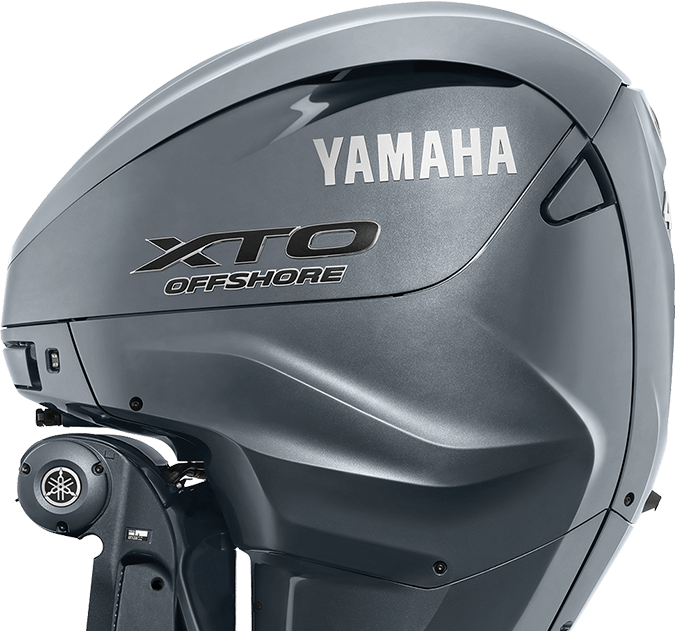

V8 5.6L 425 hp
The XTO Offshore® is the result of years of collaboration with top boat designers, and has been built from the ground up to provide the ultimate in power and efficiency offshore. With impressive stats such as 12.2:1 compression ratio for impressive fuel economy and power, industry firsts such as an electric steering system and engineering touches such as iridium spark plugs and quad thermostats, it’s purpose-built for extreme power, durability, control and reliability.- NEW Phase Angle Control Charging System* an award-winning industry first
- Available in signature Yamaha gray or new pearlescent white
- 425 hp on less-expensive 89-octane gasoline
- Compatible with Helm Master® EX
- Impressive 5-year Limited Warranty, for pleasure use
| Engine Type | V8 / DOHC / 32 valves / 4 Valves per Cylinder |
|---|---|
| Displacement | 5.6L |
| Bore x Stroke | 96 x 96 mm (3.78 x 3.78 in) |
| Prop Shaft Horsepower | 450hp at 6000 RPM |
| Full Throttle RPM Range | 5000 - 6000 RPM |
| Alternator Output at W.O.T. | 102 Amp Gross, Max (up to 96 NET at idle) |
| Compression Ratio | 12.3:1 |
| Fuel Induction System | Direct Injection / Up to 2900 PSI |
| Weight † | 437 kg (963 lbs) / 448 kg (988 lbs) / 458 kg (1010 lbs) |
| Recommended Fuel | Octane 89 |
| Recommended Engine Oil | Yamalube® 4M (See owner's manual) |
| Recommended Fuel Filtration | Yamaha 10-Micron Fuel / Water Separating Filter (external) |
| C.A.R.B. Rating | 3-Star |
| Exhaust | Through Propeller (Except in Reverse Under 2500 RPM) |
| Intake | 32-valve |
| Ignition | TCI Microcomputer |
| Spark Plug | ILMAR7E-9 / Iridium |
| Starting System | Electric w/ PTT |
| Lubrication | Wet Sump |
| Engine Oil Capacity | 7.8L / 8.2 Quarts | 7.5L / 7.9 Quarts |
| Recommended Cooling | Thermostatic Control |
| Ethanol Blend Limit | 10% Maximum |
| Gear Ratio | (25/14) 1.79 |
| Gear Shift | Forward, Neutral, Reverse |
| Shaft Length | 25" - 30" - 35" |
| Degree of Tilt | -4° through +73° |
| Degree of Trim | -4° through +16° |
| Mounting Centers | 28.5" |
| Steering | Integrated, Electric Actuation |
| Steering Angle (maximum) | 31° from center, either direction |
| Warranty | Limited 5-Year Pleasure, 3-Year Government, 1-Year Commercial |
† Weight refers to shortest shaft length, and is measured without motor oil, gearcase oil and propeller (except models 25 hp and under, which include a standard propeller). All Jet model weights include the jet pump assembly (weight estimated).
| Engine Type | V8 / DOHC / 32 valves / 4 Valves per Cylinder |
|---|---|
| Displacement | 5.6L |
| Bore x Stroke | 96 x 96 mm (3.78 x 3.78 in) |
| Prop Shaft Horsepower | 425hp at 5500 RPM |
| Full Throttle RPM Range | 5000 - 6000 RPM |
| Alternator Output at W.O.T. | 100 Amp Gross, Max |
| Compression Ratio | 12.2:1 |
| Fuel Induction System | Direct Injection / Up to 2900 PSI |
| Weight † | 432 kg (952 lbs) / 443 kg (977 lbs) / 453 kg (999 lbs) |
| Recommended Fuel | Octane 89 |
| Recommended Engine Oil | Yamalube® 4M (See owner's manual) |
| Recommended Fuel Filtration | Yamaha 10-Micron Fuel / Water Separating Filter (external) |
| C.A.R.B. Rating | 3-Star |
| Exhaust | Through Propeller (Except in Reverse Under 2500 RPM) |
| Intake | 32 |
| Ignition | TCI Microcomputer |
| Spark Plug | ILMAR7E-9 / Iridium |
| Starting System | Electric w/ PTT |
| Lubrication | Wet Sump |
| Engine Oil Capacity | 7.8L / 8.2 Quarts | 7.5L / 7.9 Quarts |
| Recommended Cooling | Thermostatic Control |
| Ethanol Blend Limit | 10% Maximum |
| Gear Ratio | (25/14) 1.79 |
| Gear Shift | Forward, Neutral, Reverse |
| Shaft Length | 25" - 30" - 35" |
| Degree of Tilt | -4° through +73° |
| Degree of Trim | -4° through +16° |
| Mounting Centers | 28.5" |
| Steering | Integrated, Electric Actuation |
| Steering Angle (maximum) | 31° from center, either direction |
| Warranty | Limited 5-Year Pleasure, 3-Year Government, 1-Year Commercial |
† Weight refers to shortest shaft length, and is measured without motor oil, gearcase oil and propeller (except models 25 hp and under, which include a standard propeller). All Jet model weights include the jet pump assembly (weight estimated).
